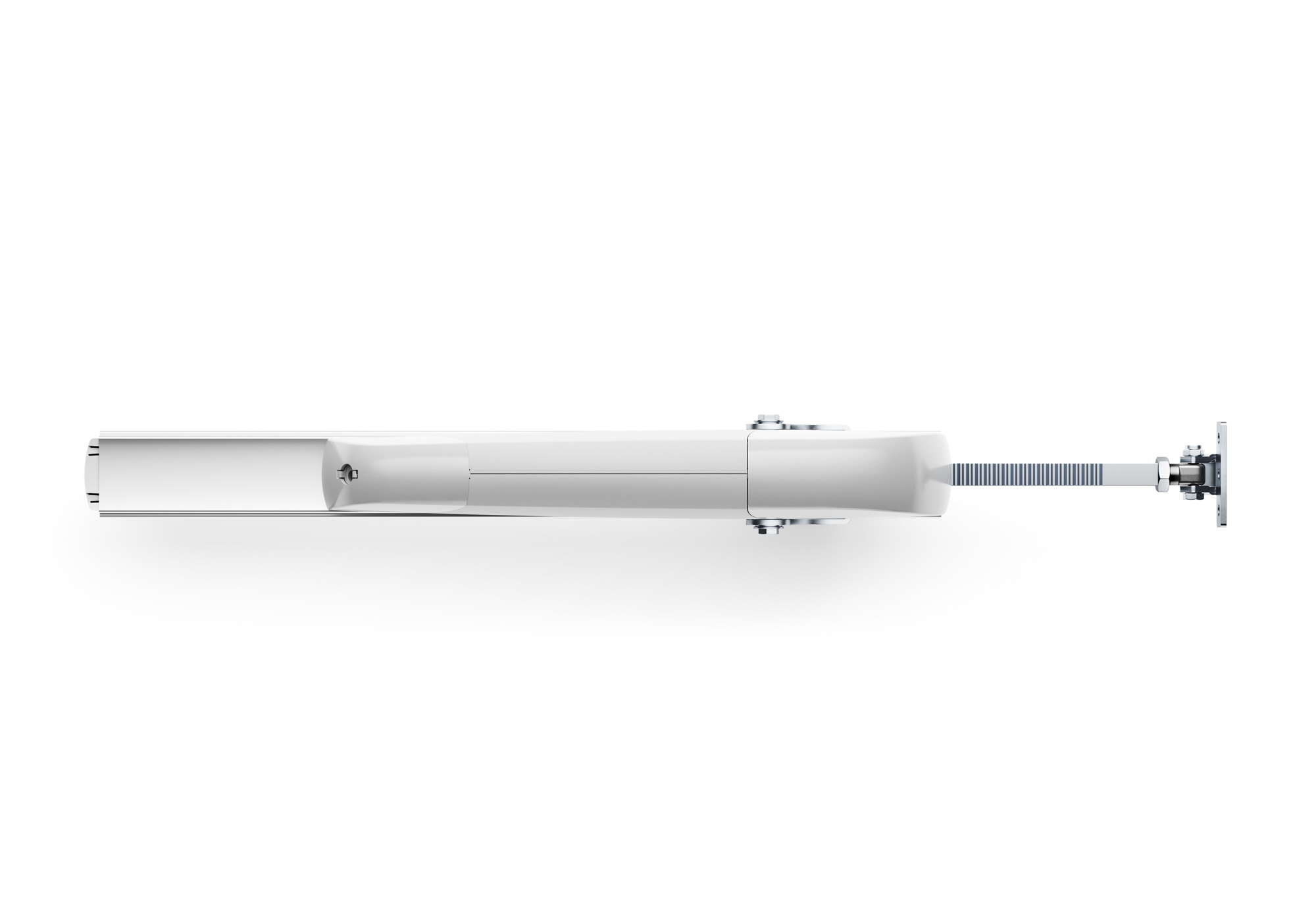

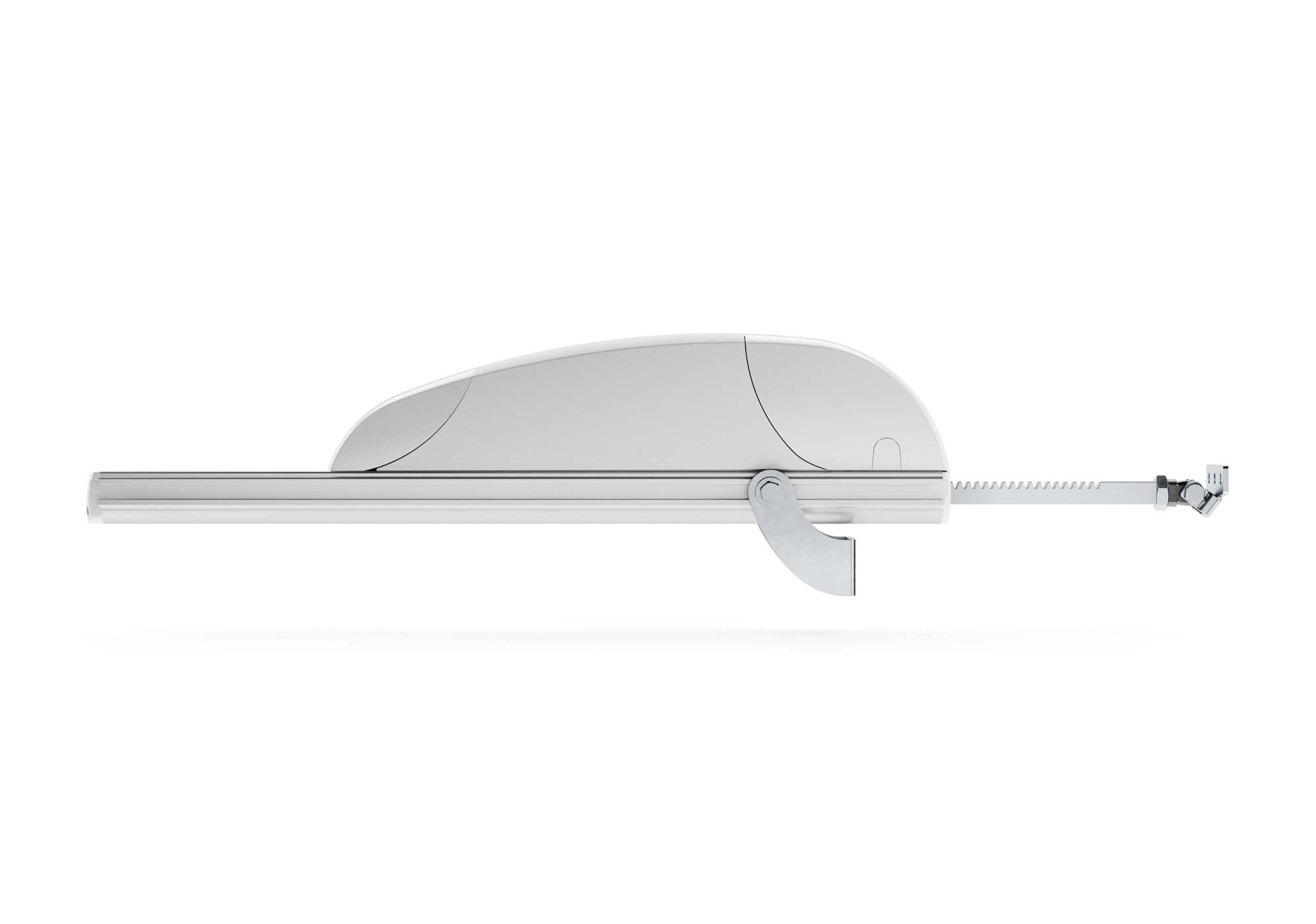

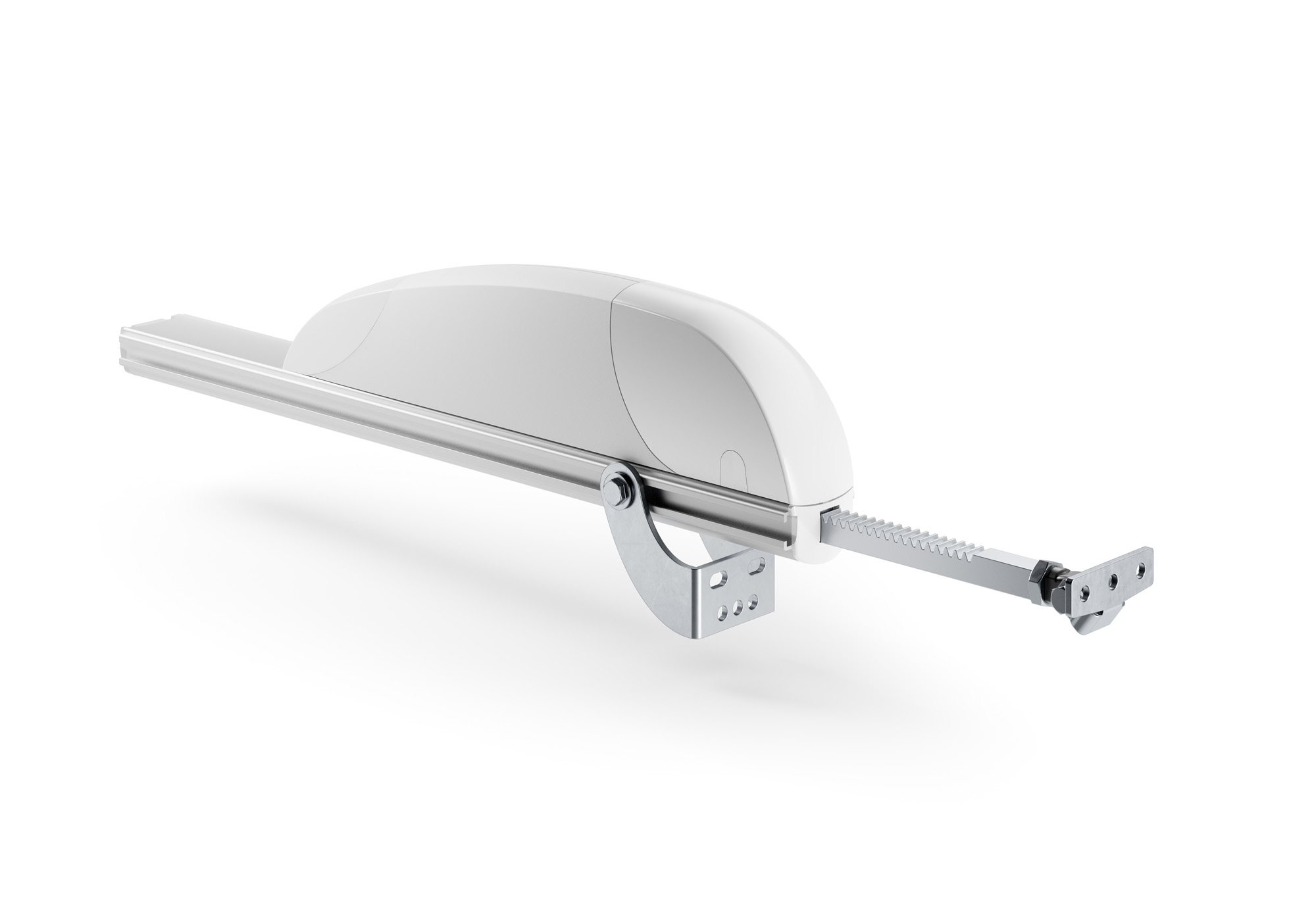

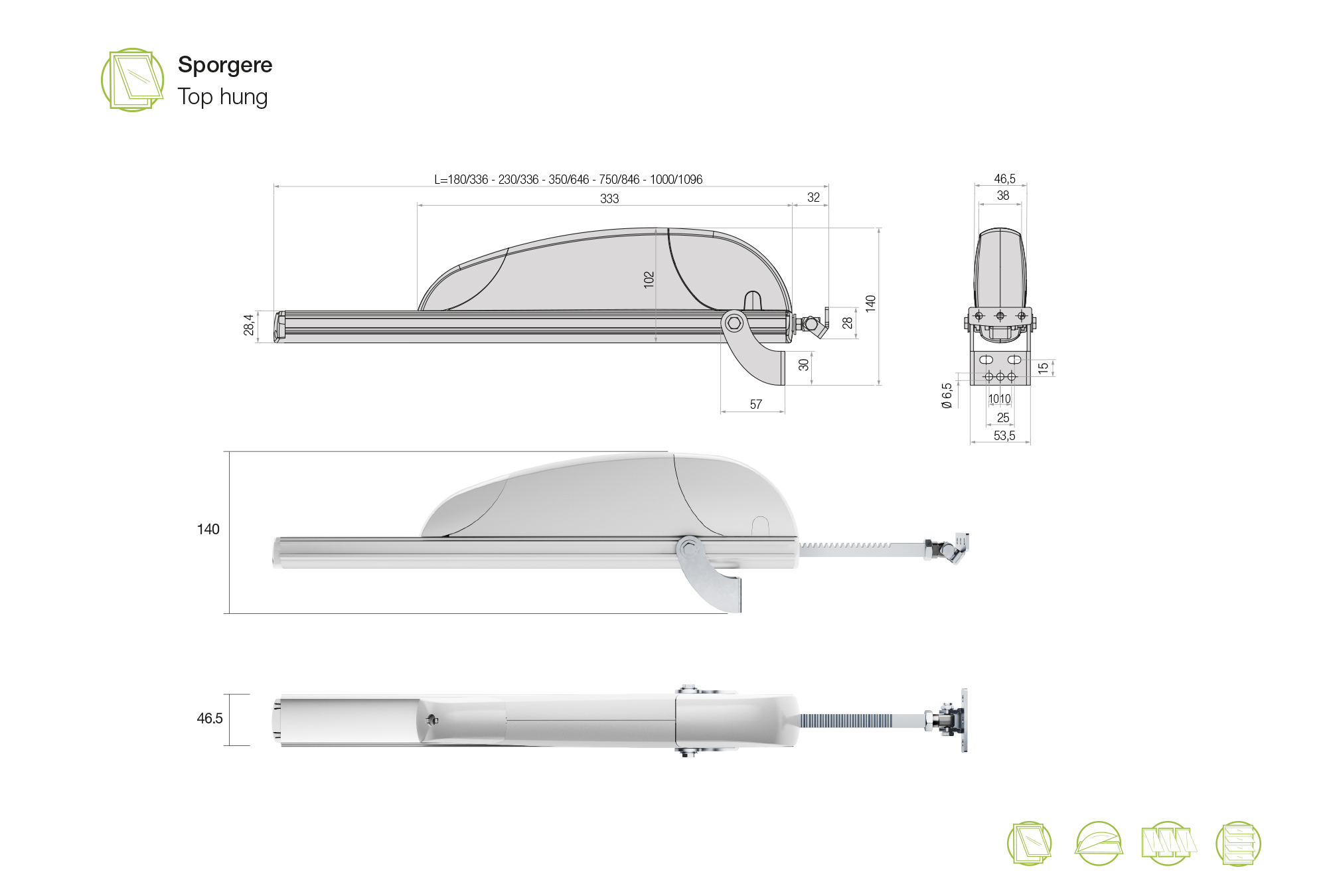

AIRWIN A65 Rack actuator
AIRWIN A65 Rack actuator
-
InstallationFixing of the adjustable bracket along the rail of the actuator body.
-
Opening limit switchThe adjustable opening limit switch is guaranteed in a stable and precise manner by the encoder.
-
Closing limit switchThe closing limit switch by current absorption guarantees stable closure over time.
-
A-MechIt is possible to mechanically connect 1 or 2 AIRWIN A MECH racks to the actuator to obtain a 2 or 3-point thrust system and ensure more uniform closure along the entire length of the window.
(*) Technical info & data on this site reflects the state of knowledge and technology available at the time of publication and may be subject to changes or updates.
For further information contact: service@comunello.it
