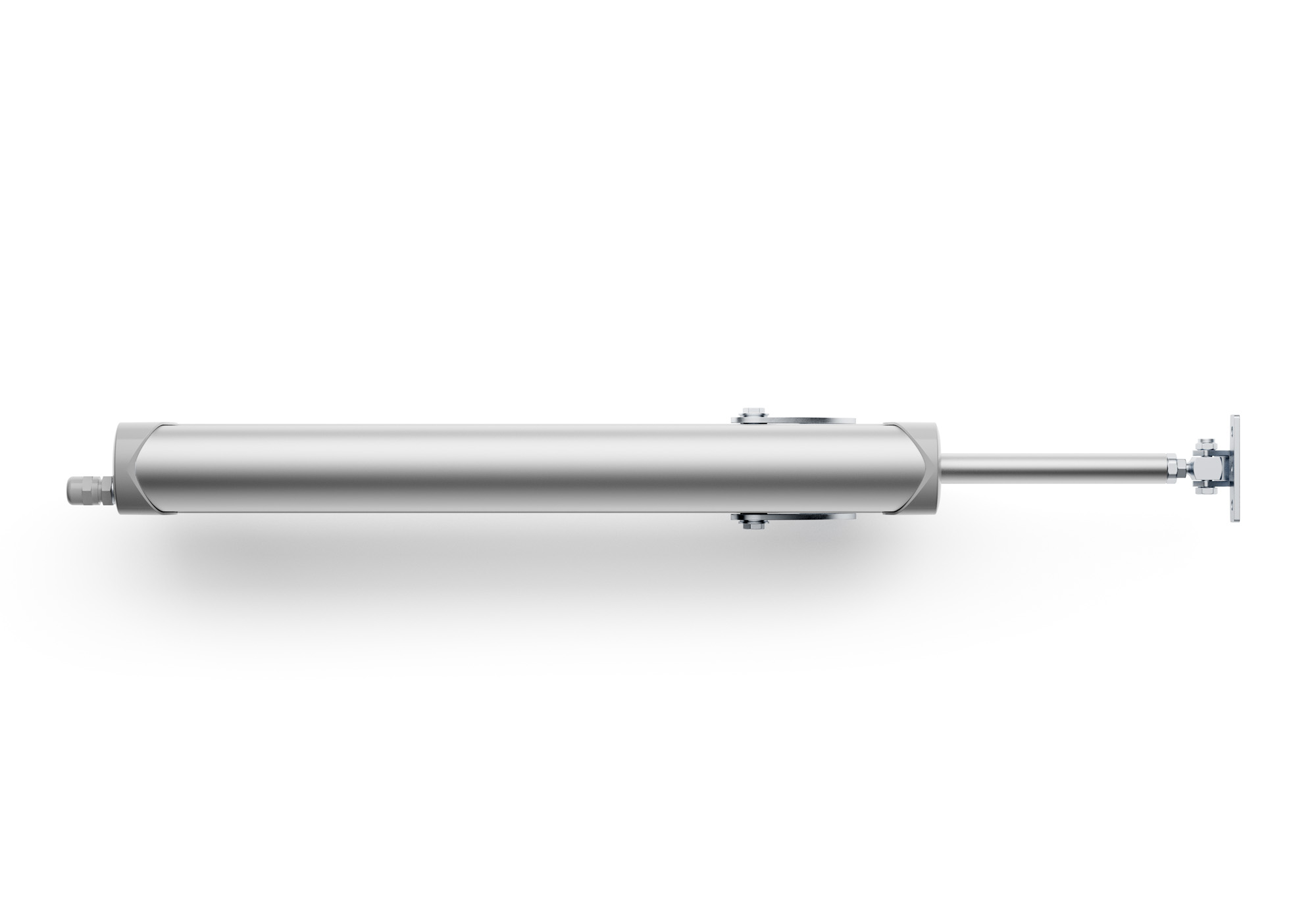

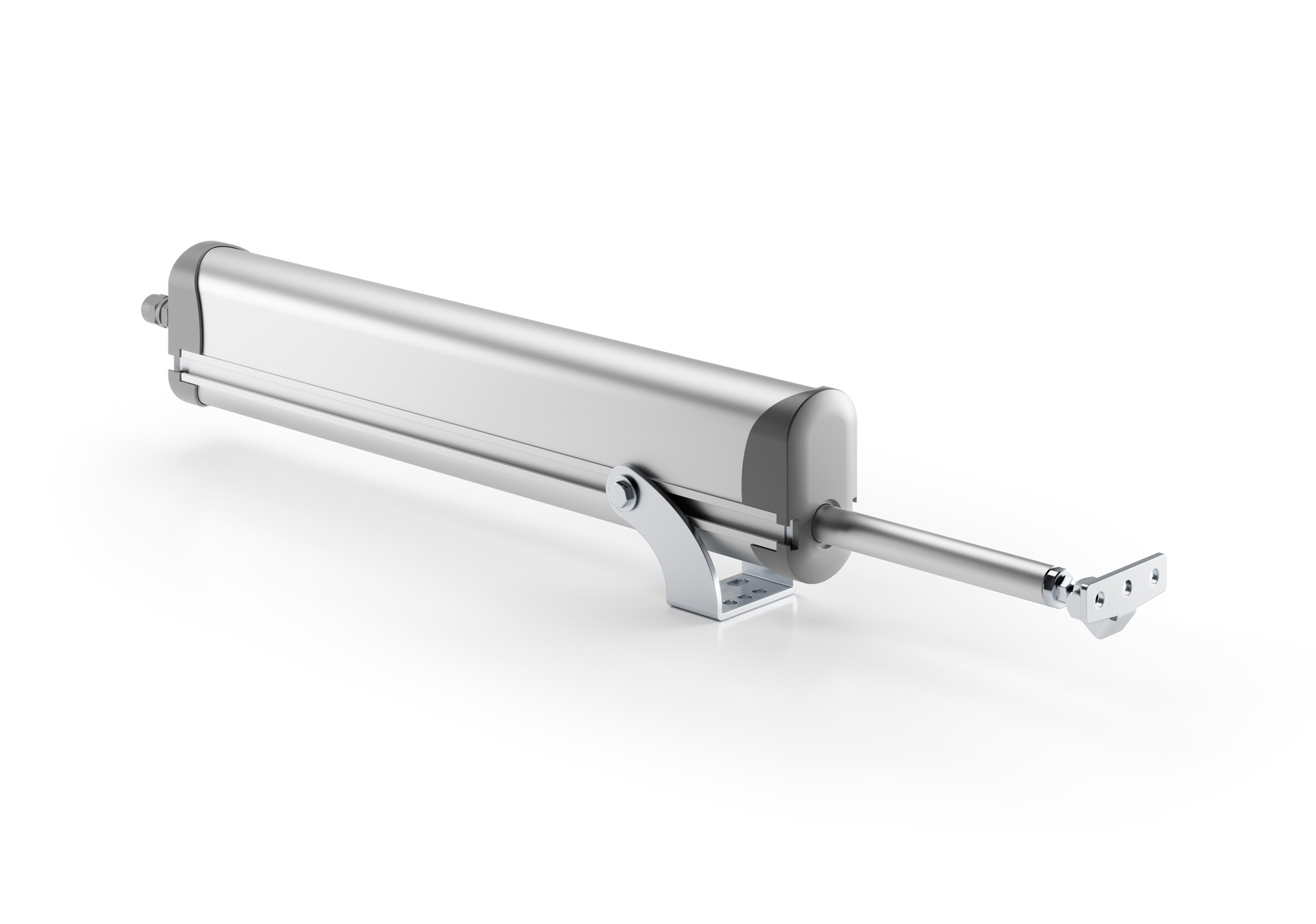

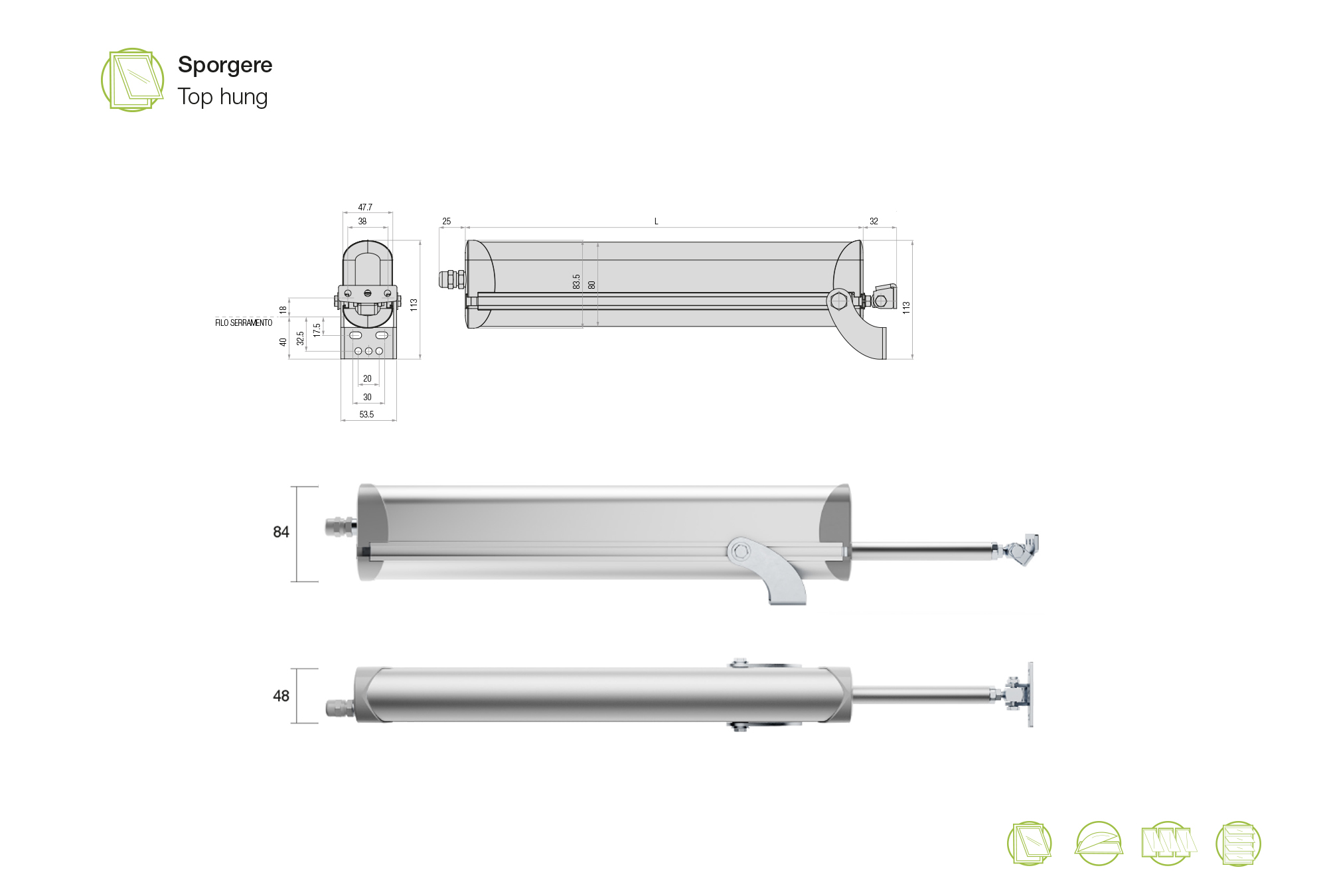

RAYWIN R60 REGULATOR Spindle actuator
RAYWIN R60 REGULATOR Spindle actuator
-

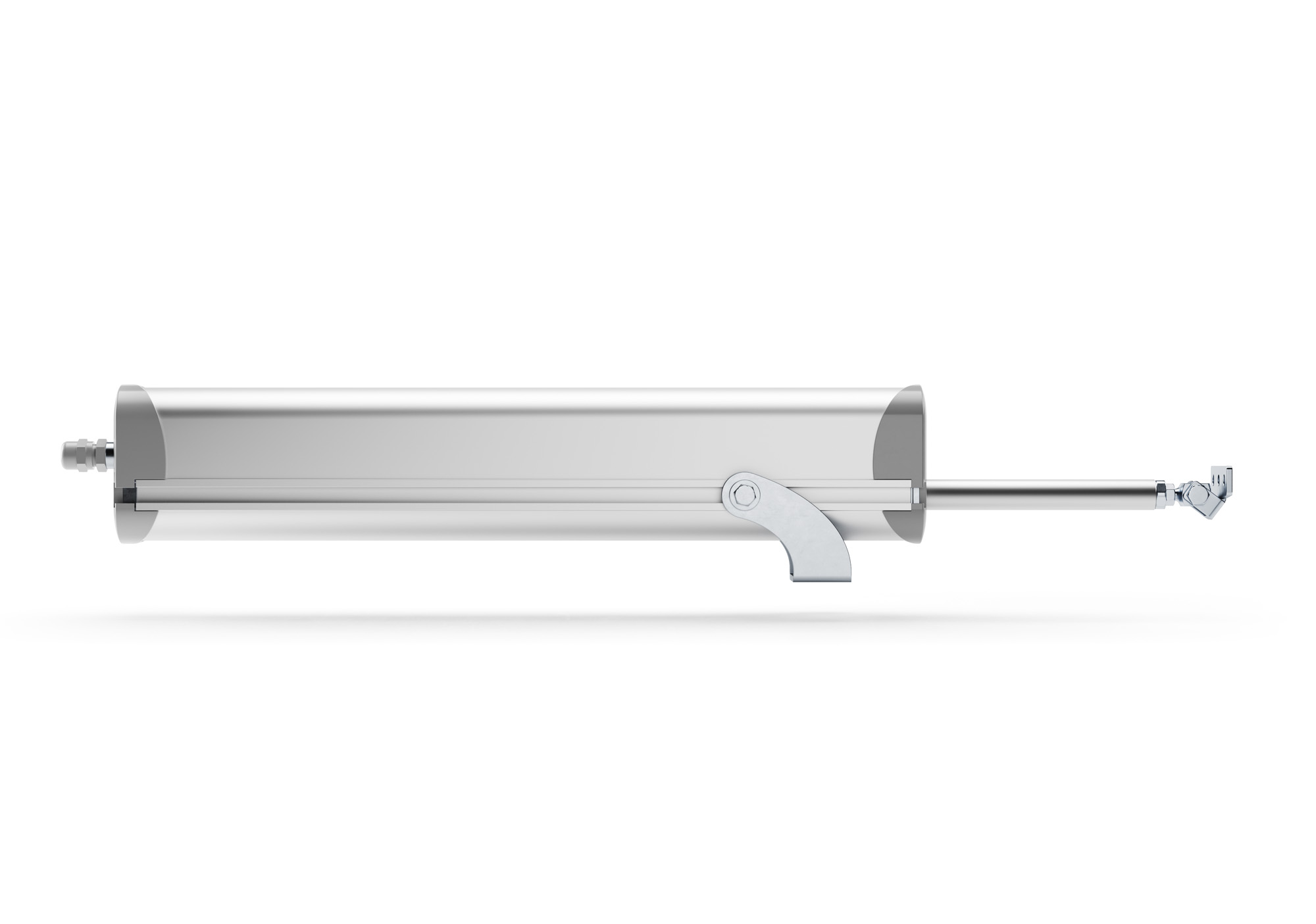

InstallationFixing of the adjustable bracket along the rail of the actuator body.
-
ResistenceThe aluminum casing and steel brackets guarantee high resistance.
-

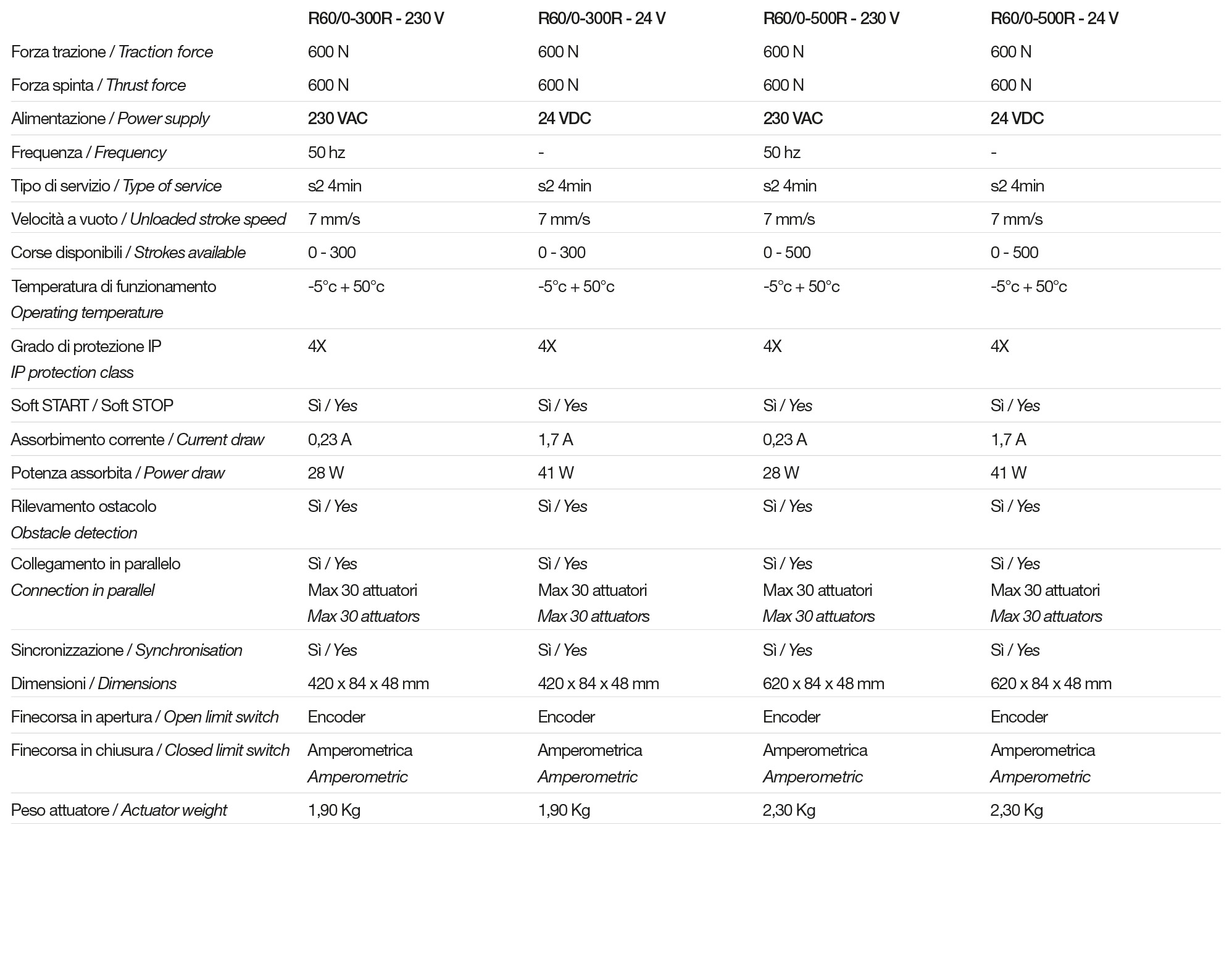

Millimeter adjustmentThe R60 REGULATOR version allows by means of dip-switches to carry out a millimeter stroke adjustment even after installation is completed. Strokes available The adjustable opening limit switch is guaranteed in a stable and precise manner by the encoder. Closing limit switch The closing limit switch by current absorption guarantees stable closure over time.
(*) Technical info & data on this site reflects the state of knowledge and technology available at the time of publication and may be subject to changes or updates.
For further information contact: service@comunello.it
