EAGLE Electromechanical actuators for swing gates

learn more

Overview

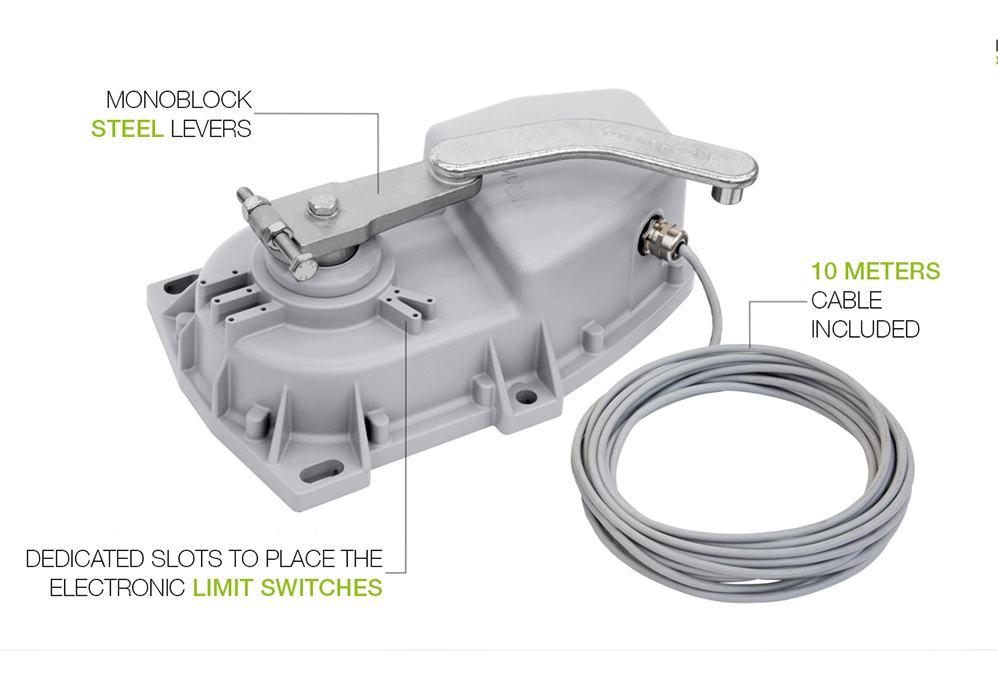

Eagle is a line of underground actuators designed to provide a solution for projects and architectural designs which require completely clean lines.

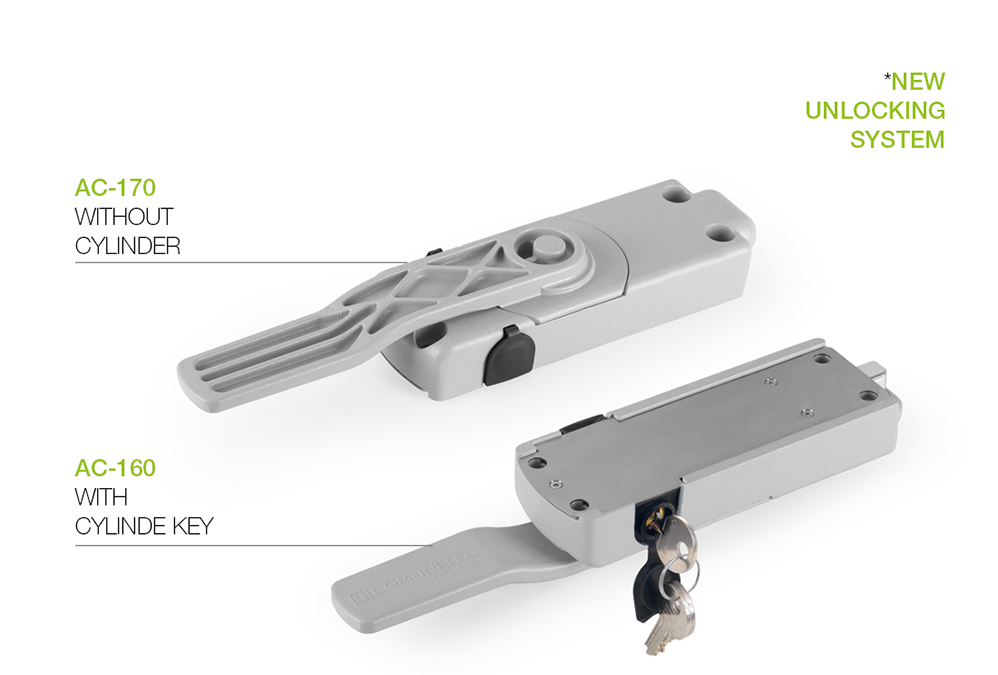

These actuators are extremely corrosion resistant, discrete and compact. Absolute security and reliability is guaranteed across the three models with lever or key release systems operated internally and externally.

Eagle actuators are practical and rapid to install, simple and intuitive to use. Optional versions with encoder are also available.

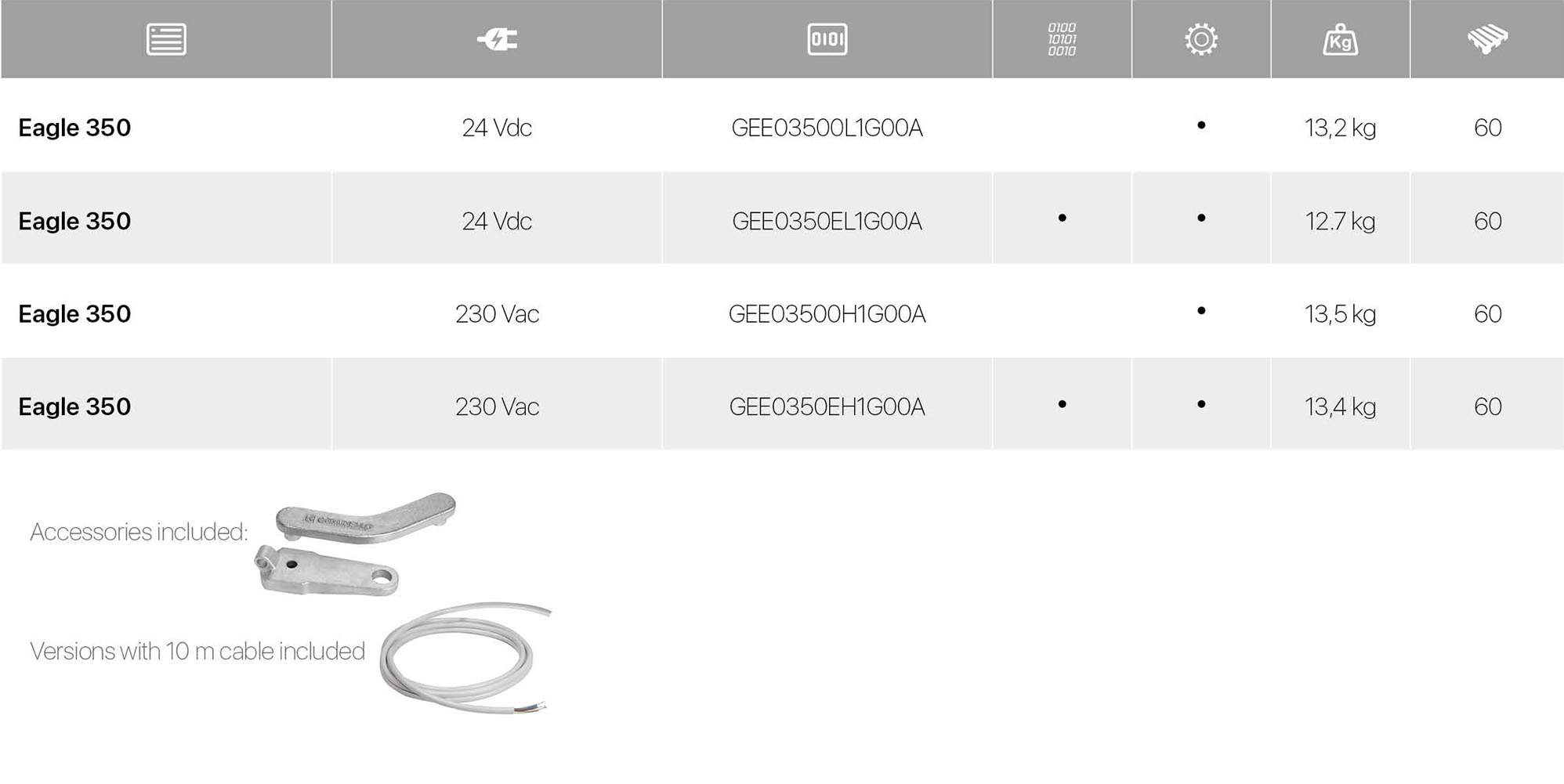

Kit composition

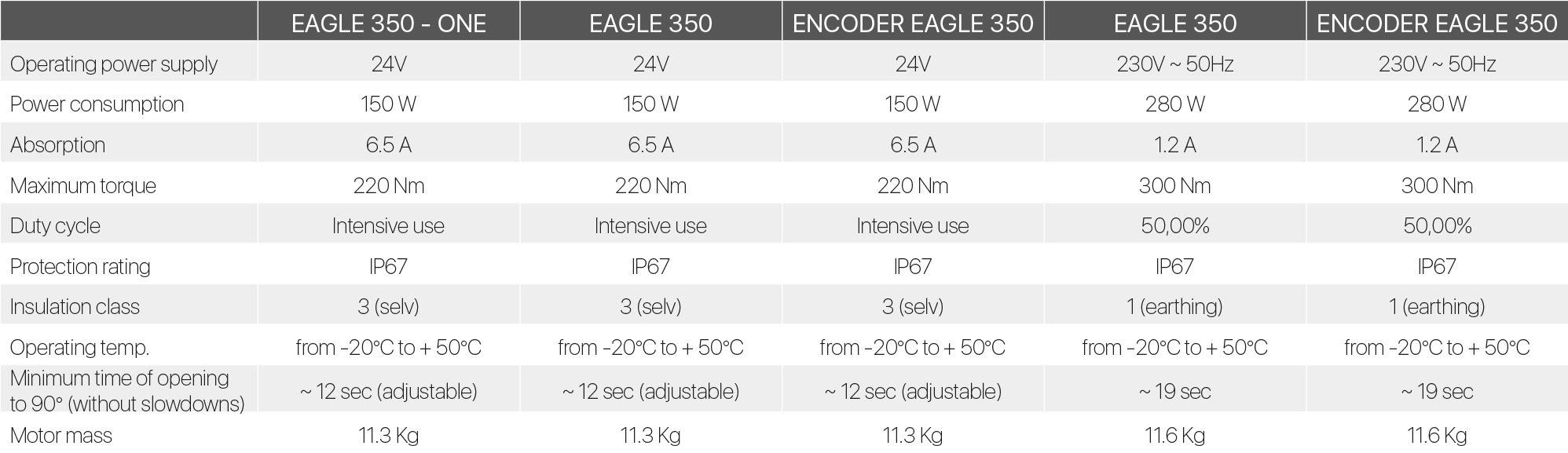

Table of technical data

0:27

0:34

Loaded: 0%

Progress: 0%

Stream TypeLIVE

-0:07

24V and 230V version for 1 or 2 motors
Suitable for actuators with or without encoder
Autoprogramming of the high precision stroke thanks to the encoder management
Indicator LEDs for simple and immediate diagnostics
Precise obstacle detection using the Encoder (in both 24V and 230V versions)
Equipped with removable radio receiver and data storage
The dedicated 'Indicator Light ' output allows to signal the position status of the gate
Regulation of speed, forces and sensitivity by trimmers
In the 230V version are available a 24V flashing output and a 230V flashing output, that can be programmed as Courtesy Lights

* Access the user area to download images, CAD drawings and BIM models.

Product Data Sheet

(*) Technical info & data on this site reflects the state of knowledge and technology available at the time of publication and may be subject to changes or updates. For further information contact: service@comunello.it
